1.3.1.3 Lab – Mapping the Internet Instructions

1.3.1.3 Lab – Mapping the Internet Instructions
5 (1) vote[s]



Lab – Mapping the Internet

Objectives

Part 1: Test Network Connectivity Using Ping
Part 2: Trace a Route to a Remote Server Using Windows Tracert
Part 3: Trace a Route to a Remote Server Using Web-Based and Software Tools
Part 4: Compare Traceroute Results

Background

Route tracing computer software is a utility that lists the networks data has to traverse from the user’s originating end device to a distant destination network.

This network tool is typically executed at the command line as:

tracert
(Microsoft Windows systems)
or
traceroute

(Unix and similar systems)

Route tracing utilities allow a user to determine the path or routes as well as the delay across an IP network.
Several tools exist to perform this function.

The traceroute (or tracert) tool is often used for network troubleshooting. By showing a list of routers traversed, it allows the user to identify the path taken to reach a particular destination on the network or across internetworks. Each router represents a point where one network connects to another network and through which the data packet was forwarded. The number of routers is known as the number of “hops” the data traveled from source to destination.

The displayed list can help identify data flow problems when trying to access a service such as a website. It
can also be useful when performing tasks such as downloading data. If there are multiple websites (mirrors)
available for the same data file, one can trace each mirror to get a good idea of which mirror would be the
fastest to use.

Two trace routes between the same source and destination conducted some time apart may produce different
results. This is due to the “meshed” nature of the interconnected networks that comprise the Internet and the
Internet Protocols ability to select different pathways over which to send packets.

Command-line-based route tracing tools are usually embedded with the operating system of the end device. Other tools, such as VisualRoute™, are proprietary programs that provide extra information. VisualRoute uses available online information to graphically display the route.

This lab assumes the installation of VisualRoute. If the computer you are using does not have VisualRoute installed, you can download the program using the following link:

http://www.visualroute.com/download.html

If you have any trouble downloading or installing VisualRoute, ask your instructor for assistance. Ensure that
you download the Lite Edition.

Scenario

Using an Internet connection, you will use three route tracing utilities to examine the Internet pathway to destination networks. This activity should be performed on a computer that has Internet access and access to the command line. First, you will use the Windows embedded tracert utility. Second, you will use a web-based traceroute tool (http://www.subnetonline.com/pages/network-tools/online-traceroute.php). Finally, you will use the VisualRoute traceroute program.

Required Resources

1 PC (Windows 7, Vista, or XP with Internet access)

Part 1: Test Network Connectivity Using Ping

Step 1: Determine whether the remote server is reachable.

To trace the route to a distant network, the PC used must have a working connection to the Internet.

a. The first tool we will use is ping. Ping is a tool used to test whether a host is reachable. Packets of information are sent to the remote host with instructions to reply. Your local PC measures whether a response is received to each packet, and how long it takes for those packets to cross the network. The name ping comes from active sonar technology in which a pulse of sound is sent underwater and bounced off of terrain or other ships.

b. From your PC, click the Windows Start icon, type cmd in the Search programs and files box, and then press Enter.

c. At the command-line prompt, type ping www.cisco.com.

d. The first output line displays the Fully Qualified Domain Name (FQDN) e144.dscb.akamaiedge.net. This is followed by the IP address 23.1.48.170. Cisco hosts the same web content on different servers throughout the world (known as mirrors). Therefore, depending upon where you are geographically, the FQDN and the IP address will be different.

e. From this portion of the output:

Four pings were sent and a reply was received from each ping. Because each ping was responded to, there was 0% packet loss. On average, it took 54 ms (54 milliseconds) for the packets to cross the network. A millisecond is 1/1,000th of a second.

Streaming video and online games are two applications that suffer when there is packet loss, or a slow network connection. A more accurate determination of an Internet connection speed can be determined by sending 100 pings, instead of the default 4. Here is how to do that:

And here is what the output from that looks like:

f. Now ping Regional Internet Registry (RIR) websites located in different parts of the world:
For Africa:

C:\> ping www.afrinic.net

For Australia:

C:\> ping www.apnic.net

For Europe:

C:\> ping www.ripe.net

For South America:

C:\> ping www.lacnic.net

All these pings were run from a computer located in the U.S. What happens to the average ping time in milliseconds when data is traveling within the same continent (North America) as compared to data from North America traveling to different continents?

[alert-success] When the ping is going to other countries, it takes almost ten times as long to get to the destination. the ping has to travel much longer distances than it does on the continent [/alert-success]

What is interesting about the pings that were sent to the European website?

[alert-success] The ping requests timed out. They probably timed out because Europe and the United States don’t have very much access to each other’s websites. [/alert-success]

Part 2: Trace a Route to a Remote Server Using Tracert

Step 1: Determine what route across the Internet traffic takes to the remote server.

Now that basic reachability has been verified by using the ping tool, it is helpful to look more closely at each
network segment that is crossed. To do this, the tracert tool will be used.

a. At the command-line prompt, type tracert www.cisco.com.

b. Save the tracert output in a text file as follows:

1) Right-click the title bar of the Command Prompt window and choose Edit > Select All.
2) Right-click the title bar of the Command Prompt window again and choose Edit > Copy.
3) Open the Windows Notepad program: Windows Start icon > All Programs > Accessories > Notepad.
4) To paste the output into Notepad, choose Edit > Paste.
5) Choose File > Save As and save the Notepad file to your desktop as tracert1.txt.

c. Run tracert for each destination website and save the output in sequentially numbered files.

C:\> tracert www.afrinic.net
C:\> tracert www.lacnic.net

d. Interpreting tracert outputs.

Routes traced can go through many hops and a number of different Internet Service Providers (ISPs), depending on the size of your ISP and the location of the source and destination hosts. Each “hop” represents a router. A router is a specialized type of computer used to direct traffic across the Internet.

Imagine taking an automobile trip across several countries using many highways. At different points in the trip you come to a fork in the road in which you have the option to select from several different highways. Now further imagine that there is a device at each fork in the road that directs you to take the correct
highway to your final destination. That is what a router does for packets on a network.

Because computers talk in numbers, rather than words, routers are uniquely identified using IP addresses (numbers with the format x.x.x.x). The tracert tool shows you what path through the network a packet of information takes to reach its final destination. The tracert tool also gives you an idea of how fast traffic is going on each segment of the network. Three packets are sent to each router in the path, and the return time is measured in milliseconds. Now use this information to analyze the tracert results to www.cisco.com. Below is the entire traceroute:

Below is the breakdown:

In the example output shown above, the tracert packets travel from the source PC to the local router default gateway (hop 1: 192.168.1.1) to the ISPs Point of Presence (POP) router (hop 2: 10.18.20.1). Every ISP has numerous POP routers. These POP routers are at the edge of the ISP’s network and are the means by which customers connect to the Internet. The packets travel along the Verizon network for two hops and then jump to a router that belongs to alter.net. This could mean that the packets have traveled to another ISP. This is significant because sometimes there is packet loss in the transition between ISPs, or sometimes one ISP is slower than another. How could we determine if alter.net is another ISP or the same ISP?

e. There is an Internet tool known as whois. The whois tool allows us to determine who owns a domain name. A web-based whois tool is found at http://whois.domaintools.com/. This domain is also owned by Verizon according to the web-based whois tool.

To summarize, Internet traffic starts at a home PC and travels through the home router (hop 1). It then connects to the ISP and travels through its network (hops 2-7) until it arrives at the remote server (hop 8). This is a relatively unusual example in which there is only one ISP involved from start to finish. It is typical to have two or more ISP involved as displayed in the following examples.

f. Now examine an example that involves Internet traffic crossing multiple ISPs. Below is the tracert for
www.afrinic.net:

What happens at hop 7? Is level3.net the same ISP as hops 2-6, or a different ISP? Use the whois tool to answer this question.

[alert-success] At hop 7, the packet changes location. The ISP is not the same as hops 1-6.[/alert-success]

What happens in hop 10 to the amount of time it takes for a packet to travel between Washington D.C.
and Paris, as compared with the earlier hops 1-9?

[alert-success] The time elapsed significantly increases because the packet is moving a much larger distance.[/alert-success]

What happens in hop 18? Do a whois lookup on 168.209.201.74 using the whois tool. Who owns this network?

[alert-success] The packet moves from the UK to South Africa. South Africa Johannesburg Dimension Data owns the network.[/alert-success]

g. Type tracert www.lacnic.net.

What happens in hop 7?

[alert-success] On hop 7, the packet moves from Canada to the United States. [/alert-success]

Part 3: Trace a Route to a Remote Server Using Web-Based and SoftwareTools

Step 1: Use a web-based traceroute tool.

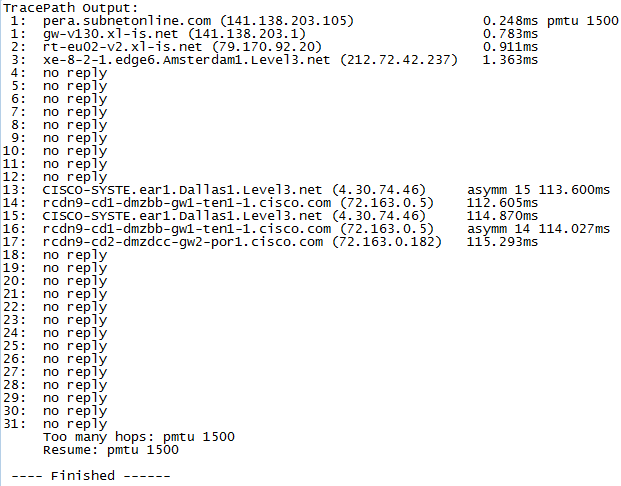

Use http://www.subnetonline.com/pages/network-tools/online-tracepath.php to trace the route to the following websites:

www.cisco.com
www.afrinic.net

Capture and save the output in Notepad.

How is the traceroute different when going to www.cisco.com from the command prompt (see Part 2) rather than from the online website? (Your results may vary depending upon where you are located geographically, and which ISP is providing connectivity to your school.)

[alert-success] In the command prompt, there isn’t too many hops to get to www.cisco.com. Using the online website is too many hops and the device can’t track it. [/alert-success]

Compare the tracert from Part 1 that goes to Africa with the tracert that goes to Africa from the web
interface. What difference do you notice?

[alert-success] The tracert from part 1 is far longer and took longer to process the trip to Africa than the web interface based tracert. That one is far shorter and takes less time. [/alert-success]

Some of the traceroutes have the abbreviation asymm in them. Any guesses as to what this means?
What is its significance?

[alert-success]”asymm” means the the path to the hop and back have been different (asymmetric). This usually happens when there is some link in one direction jammed or the network architecture encourages different paths for the different directions. The number after asymm shows the grade of asymmetry (i.e. how many hops are different). [/alert-success]
Step 2: Use VisualRoute Lite Edition.

VisualRoute is a proprietary traceroute program that can display the tracing path results graphically.

a. Please download the VisualRoute Lite Edition from the following link if it is not already installed:
http://www.visualroute.com/download.html

If you have any trouble downloading or installing VisualRoute, ask your instructor for assistance. Ensure
that you download the Lite Edition.

b. Using VisualRoute 2010 Lite Edition, trace the routes to www.cisco.com.

c. Record the IP addresses in the path http://ccnav6.com/wp-admin/upload.phpin Notepad.

Part 4: Compare Traceroute Results

Compare the traceroute results to www.cisco.com from Parts 2 and 3.

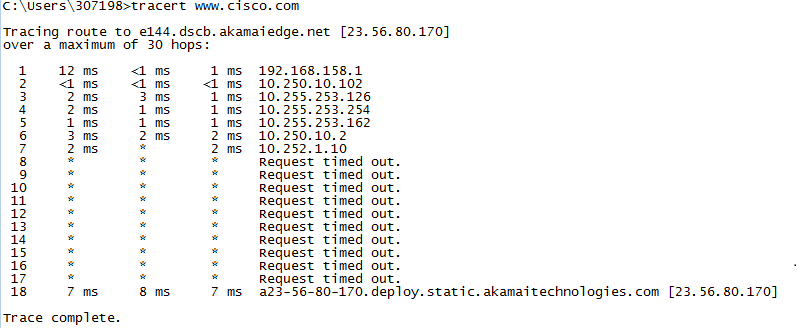

Step 1: List the path to www.cisco.com using tracert.
[alert-success] [/alert-success]
Step 2: List the path to www.cisco.com using the web-based tool on subnetonline.com.
[alert-success] [/alert-success]
Step 3: List the path to www.cisco.com using VisualRoute Lite edition.
[alert-success] [/alert-success]

Did all the traceroute utilities use the same paths to www.cisco.com? Explain.

[alert-success] Traceroute and Visual Route used the same paths to www.cisco.com because they are both being launched off the computer. The web tracer is different because it is tracing from a different location. [/alert-success]

Reflection

Having now viewed traceroute through three different tools (tracert, web interface, and VisualRoute), are
there any insights that using VisualRoute provided that the other two tools did not?

[alert-success] It showed the tracing on a graph using a total timestamp on the bottom, an IP address as a location point, and time the packet took to hop. It shows DNS lookup information, provides a network summary, tells whether or not there are alternate routes to the network, and gives firewall information. [/alert-success]
