Packet Tracer – Skills Integration Challenge

Addressing Table

5-1

Objectives

· Configure hostnames and IP addresses on two Cisco Internetwork Operating System (IOS) switches using the command-line interface (CLI).
· Use Cisco IOS commands to specify or limit access to the device configurations.
· Use IOS commands to save the running configuration.
· Configure two host devices with IP addresses.
· Verify connectivity between the two PC end devices.

Scenario

As a recently hired LAN technician, your network manager has asked you to demonstrate your ability to configure a small LAN. Your tasks include configuring initial settings on two switches using the Cisco IOS and configuring IP address parameters on host devices to provide end-to-end connectivity. You are to use two switches and two hosts/PCs on a cabled and powered network.

Requirements

· Use a console connection to access each switch.
· Name ASw-1 and ASw-2 switches.
· Use the R4Xe3 password for all lines.
· Use the C4aJa secret password.
· Encrypt all clear text passwords.
· Include the word warning in the message-of-the-day (MOTD) Banner.
· Configure addressing for all devices according to the Addressing Table.
· Save your configurations.
· Verify connectivity between all devices.

Note: Click Check Results to see your progress. Click Reset Activity to generate a new set of requirements. If you click on this before you complete the activity, all configurations will be lost.

Instructions:

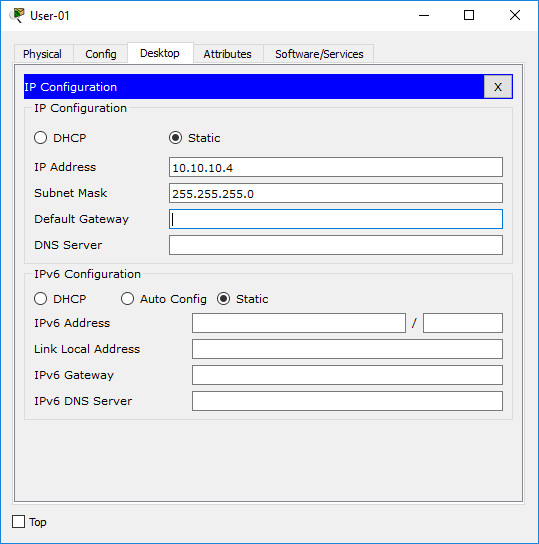

u1
u2

Switch>enable
Switch#configure terminal
Switch(config)#hostname ASw-1
ASw-1(config)#line console 0
ASw-1(config-line)#password xAw6k
ASw-1(config-line)#login
ASw-1(config-line)#exit
ASw-1(config)#line vty 0 4
ASw-1(config-line)#password xAw6k
ASw-1(config-line)#login
ASw-1(config-line)#exit
ASw-1(config)#enable secret 6EBUp
ASw-1(config)#service password-encryption
ASw-1(config)#banner motd #warning#
ASw-1(config)#interface vlan 1
ASw-1(config-if)#ip address 10.10.10.100 255.255.255.0
ASw-1(config-if)#no shutdown
ASw-1(config-if)#exit
ASw-1(config)#exit
ASw-1#copy running-config startup-config

Switch>enable
Switch#configure terminal
Switch(config)#hostname ASw-2
ASw-2(config)#line console 0
ASw-2(config-line)#password xAw6k
ASw-2(config-line)#login
ASw-2(config-line)#exit
ASw-2(config)#line vty 0 4
ASw-2(config-line)#password xAw6k
ASw-2(config-line)#login
ASw-2(config-line)#exit
ASw-2(config)#enable secret 6EBUp
ASw-2(config)#service password-encryption
ASw-2(config)#banner motd #warning#
ASw-2(config)#interface vlan 1
ASw-2(config-if)#ip address 10.10.10.150 255.255.255.0
ASw-2(config-if)#no shutdown
ASw-2(config-if)#exit
ASw-2(config)#exit
ASw-2#copy running-config startup-config

Download Pka file and PDF file below:
