CCNA 1 v6.0 – ITN Practice Skills Assessment PT 100% Score

CCNA Routing and Switching Introduction to Networks

ITN Practice Skills Assessment – Packet Tracer Type A

A few things to keep in mind while completing this activity:
1. Do not use the browser Back button or close or reload any exam windows during the exam.
2. Do not close Packet Tracer when you are done. It will close automatically.
3. Click the Submit Assessment button in the browser window to submit your work.

Introduction

In this assessment, you will configure devices in an IPv4/IPv6 network. For the sake of time, you will not be asked to perform all configurations on all network devices as you may be required to do in a real network or other assessment. Instead, you will use the skills and knowledge that you have learned in the labs in this course to configure the Building 1 router. In addition, you will address the hosts on two LANs with IPv4 and IPv6 addresses, activate and address the management interface of the Second Floor Switch, and back up a device configuration to a TFTP server.

You will receive one of several topologies.

You are not required to configure the First Floor Switch, and you will not be able to access it in this practice skills assessment activity.

All IOS device configurations should be completed from a direct terminal connection to the device console. In addition, many values that are required to complete the configurations have not been given to you. In those cases, create the values that you need to complete the requirements. For values that have been supplied to you, they must be entered exactly as they appear in order for you to get full credit for your configuration.

You will practice and be assessed on the following skills:
• Configuration of initial IOS device settings
• Design and calculation of IPv4 addressing
• Configuration of IOS device interfaces including IPv4 and IPv6 addressing when appropriate
• Addressing of network hosts with IPv4 and IPv6 addresses
• Enhancing device security, including configuration of the secure transport protocol for remote device configuration
• Configuration of a switch management interface

Requirements by device:

Building 1 router:

• Configuration of initial router settings
• Interface configuration and IPv4 and IPv6 addressing
• Device security enhancement or device hardening
• Secure transport for remote configuration connections as covered in the labs
• Backup of the configuration file to a TFTP server

Second Floor Switch:

• Enabling basic remote management by Telnet

PC and Server hosts:

• IPv4 full addressing
• IPv6 addressing

Addressing Table

Instructions

Step 1: Determine the IP Addressing Scheme.

Design an IPv4 addressing scheme and complete the Addressing Table based on the following requirements. Use the table to help you organize your work.

a. Subnet the 192.168.1.0/24 network to provide 30 host addresses per subnet while wasting the fewest addresses.
b. Assign the fourth subnet to the First Floor LAN.
c. Assign the last network host address (the highest) in this subnet to the G0/0 interface on Building 1. (192.168.1.126)
d. Starting with the fifth subnet, subnet the network again so that the new subnets will provide 14 host addresses per subnet while wasting the fewest addresses.
e. Assign the second of these new 14-host subnets to the Second Floor LAN.
f. Assign the last network host address (the highest) in the Second Floor LAN subnet to the G0/1 interface of the Building 1 router. (192.168.1.158)
g. Assign the second to the last address (the second highest) in this subnet to the VLAN 1 interface of the Second Floor Switch. (192.168.1.157)
h. Configure addresses on the hosts using any of the remaining addresses in their respective subnets.

Step 2: Configure the Building 1 Router.

a. Configure the Building 1 router with all initial configurations that you have learned in the course so far:
• Configure the router hostname: Middle
• Protect device configurations from unauthorized access with the encrypted privileged exec password.
• Secure all access lines into the router using methods covered in the course and labs.
• Require newly-entered passwords must have a minimum length of 10 characters.
• Prevent all passwords from being viewed in clear text in device configuration files.
• Configure the router to only accept in-band management connections over the protocol that is more secure than Telnet, as was done in the labs. Use the value 1024 for encryption key strength.
• Configure local user authentication for in-band management connections. Create a user with the name netadmin and a secret password of Cisco_CCNA5 Give the user the highest administrative privileges. Your answer must match these values exactly.
b. Configure the two Gigabit Ethernet interfaces using the IPv4 addressing values you calculated and the IPv6 values provided in the addressing table.
• Reconfigure the link local addresses to the value shown in the table.
• Document the interfaces in the configuration file.

Step 3: Configure the Second Floor Switch.

Configure Second Floor Switch for remote management over Telnet.

Step 4: Configure and Verify Host Addressing.

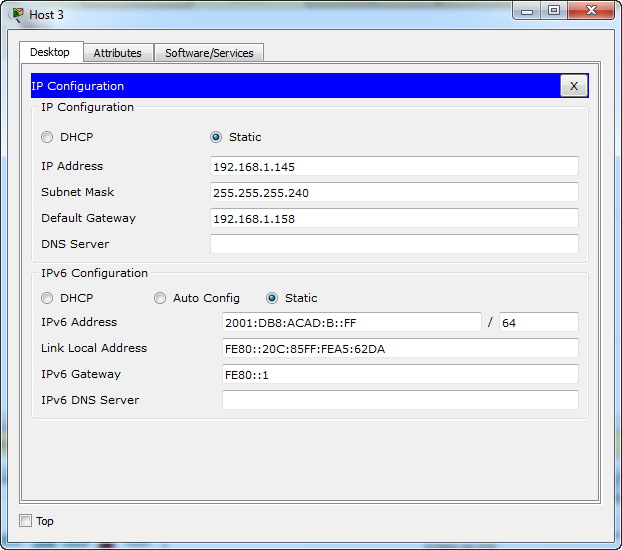

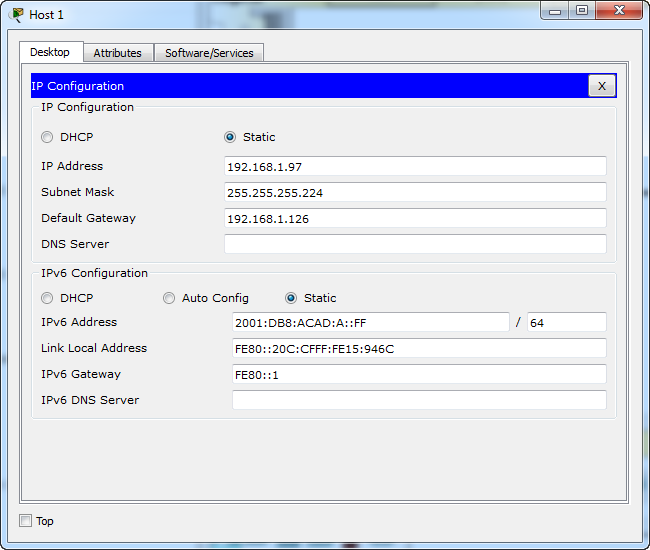

a. Use the IPv4 addressing from Step 1 and the IPv6 addressing values provided in the addressing table to configure all host PCs with the correct addressing.
b. Use the router interface link-local address as the IPv6 default gateways on the hosts.

Step 5: Backup the Configuration of the Building 1 Router to TFTP.

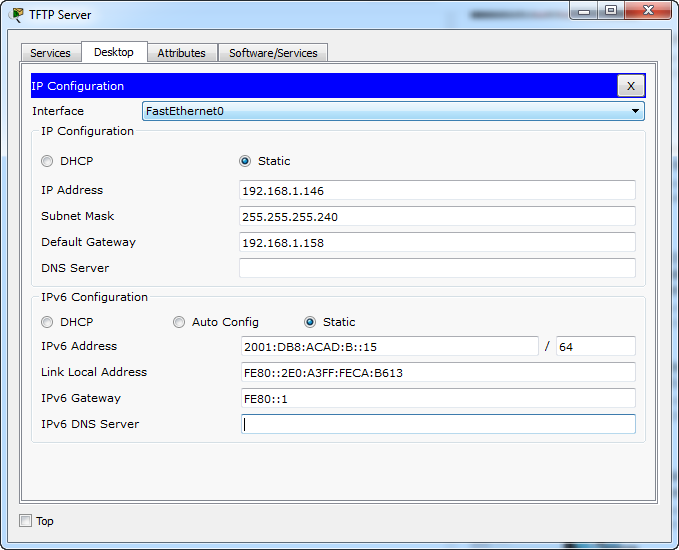

a. Complete the configuration of the TFTP server using the IPv4 addressing values from Step 1 and the values in the addressing table.
b. Backup the running configuration of Building 1 to the TFTP Server. Use the default file name.

Answers

Secon Floor Switch (or LAB 214-A Switch):

Use line console to connect Host 3 and Second Floor Switch. On Host 3, go to “Desktop Tab” –> choice “Terminal”

enable
conf terminal
enable secret class12345
service password-encryption
banner motd $Second Floor Switch$
no ip domain-lookup

line console 0
password cisco12345
login
logging synchronous
exec-timeout 60
exit

line vty 0 15
password cisco12345
login
logging synchronous
exec-timeout 60
exit

interface vlan 1
ip address 192.168.1.157 255.255.255.240
no shutdown

ip default-gateway 192.168.1.158
exit
write

CCNA Routing and Switching Introduction to Networks

ITN Practice Skills Assessment – Packet Tracer Type B

A few things to keep in mind while completing this activity:
1. Do not use the browser Back button or close or reload any exam windows during the exam.
2. Do not close Packet Tracer when you are done. It will close automatically.
3. Click the Submit Assessment button in the browser window to submit your work.

Introduction

In this assessment, you will configure devices in an IPv4/IPv6 network. For the sake of time, you will not be asked to perform all configurations on all network devices as you may be required to do in a real network or other assessment. Instead, you will use the skills and knowledge that you have learned in the labs in this course to configure the Town Hall router (or CS Department Router). In addition, you will address the hosts on two LANs with IPv4 and IPv6 addresses, activate and address the management interface of the Administration Switch (or LAB 214-A Switch), and back up a device configuration to a TFTP server.

You will receive one of several topologies.

You are not required to configure the IT Department Switch, and you will not be able to access it in this practice skills assessment activity.

All IOS device configurations should be completed from a direct terminal connection to the device console. In addition, many values that are required to complete the configurations have not been given to you. In those cases, create the values that you need to complete the requirements. For values that have been supplied to you, they must be entered exactly as they appear in order for you to get full credit for your configuration.

You will practice and be assessed on the following skills:
• Configuration of initial IOS device settings
• Design and calculation of IPv4 addressing
• Configuration of IOS device interfaces including IPv4 and IPv6 addressing when appropriate
• Addressing of network hosts with IPv4 and IPv6 addresses
• Enhancing device security, including configuration of the secure transport protocol for remote device configuration
• Configuration of a switch management interface

Requirements by device:

Town Hall router (or CS Department Router):

• Configuration of initial router settings
• Interface configuration and IPv4 and IPv6 addressing
• Device security enhancement or device hardening
• Secure transport for remote configuration connections as covered in the labs
• Backup of the configuration file to a TFTP server

Administration Switch (or LAB 214-A Switch):

• Enabling basic remote management by Telnet

PC and Server hosts:

• IPv4 full addressing
• IPv6 addressing

Addressing Table

Instructions

Step 1: Determine the IP Addressing Scheme.

Design an IPv4 addressing scheme and complete the Addressing Table based on the following requirements. Use the table to help you organize your work.

a. Subnet the 192.168.1.0/24 network to provide 30 host addresses per subnet while wasting the fewest addresses.
b. Assign the fourth subnet to the IT Department LAN.
c. Assign the last network host address (the highest) in this subnet to the G0/0 interface on Town Hall/CS Department . (192.168.1.126)
d. Starting with the fifth subnet, subnet the network again so that the new subnets will provide 14 host addresses per subnet while wasting the fewest addresses.
e. Assign the second of these new 14-host subnets to the Administration LAN.
f. Assign the last network host address (the highest) in the Administration LAN subnet to the G0/1 interface of the Town Hall router. (192.168.1.158)
g. Assign the second to the last address (the second highest) in this subnet to the VLAN 1 interface of the Administration Switch (or LAB 214-A Switch). (192.168.1.157)
h. Configure addresses on the hosts using any of the remaining addresses in their respective subnets.

Step 2: Configure the Town Hall router (or CS Department Router).

a. Configure the Town Hall router (or CS Department Router) with all initial configurations that you have learned in the course so far:
• Configure the router hostname: Middle
• Protect device configurations from unauthorized access with the encrypted privileged exec password.
• Secure all access lines into the router using methods covered in the course and labs.
• Require newly-entered passwords must have a minimum length of 10 characters.
• Prevent all passwords from being viewed in clear text in device configuration files.
• Configure the router to only accept in-band management connections over the protocol that is more secure than Telnet, as was done in the labs. Use the value 1024 for encryption key strength.
• Configure local user authentication for in-band management connections. Create a user with the name netadmin and a secret password of Cisco_CCNA5 Give the user the highest administrative privileges. Your answer must match these values exactly.
b. Configure the two Gigabit Ethernet interfaces using the IPv4 addressing values you calculated and the IPv6 values provided in the addressing table.
• Reconfigure the link local addresses to the value shown in the table.
• Document the interfaces in the configuration file.

Step 3: Configure the Administration Switch (or LAB 214-A Switch).

Configure Administration Switch (or LAB 214-A Switch) for remote management over Telnet.

Step 4: Configure and Verify Host Addressing.

a. Use the IPv4 addressing from Step 1 and the IPv6 addressing values provided in the addressing table to configure all host PCs with the correct addressing.
b. Use the router interface link-local address as the IPv6 default gateways on the hosts.

Step 5: Backup the Configuration of the Town Hall router (or CS Department Router) to TFTP.

a. Complete the configuration of the TFTP server using the IPv4 addressing values from Step 1 and the values in the addressing table.
b. Backup the running configuration of Town Hall (or CS Department) to the TFTP Server. Use the default file name.

Answers

Town Hall router (or CS Department Router)

Use line console to connect Reception Host (or 124-1) and Town Hall router (or CS Department Router). On Reception Host (or 124-1), go to “Desktop Tab” –> choice “Terminal”

en
conf terminal
hostname Middle
enable secret class12345
service password-encryption
banner motd $This is Router$
security passwords min-length 10
login block-for 120 attempts 2 within 30
no ip domain-lookup
ip domain-name ccnav6.com
crypto key generate rsa
1024

line console 0
password cisco12345
login
logging synchronous
exec-timeout 60
exit

line vty 0 4
password cisco12345
transport input ssh
login local
logging synchronous
exec-timeout 60
exit

line aux 0
password cisco12345
login
logging synchronous
exec-timeout 60
exit

ip ssh version 2
ip ssh time-out 120
username netadmin privilege 15 secret Cisco_CCNA5

interface g0/0
ip address 192.168.1.126 255.255.255.224
description First Floor LAN
ipv6 address 2001:DB8:ACAD:A::1/64
ipv6 address fe80::1 link-local
no shutdown
exit

interface g0/1
ip address 192.168.1.158 255.255.255.240
description Second Floor LAN
ipv6 address 2001:DB8:ACAD:B::1/64
ipv6 address fe80::1 link-local
no shutdown
exit
ipv6 unicast-routing
exit
write

copy running-config tftp:
192.168.1.146

Administration Switch (or LAB 214-A Switch)

Use line console to connect IT Host (214-1)) and Administration Switch (or LAB 214-A Switch). On IT Host (or 214-1), go to “Desktop Tab” –> choice “Terminal”

enable
conf terminal
enable secret class12345
service password-encryption
banner motd $Second Floor Switch$
no ip domain-lookup

line console 0
password cisco12345
login
logging synchronous
exec-timeout 60
exit

line vty 0 15
password cisco12345
login
logging synchronous
exec-timeout 60
exit

interface vlan 1
ip address 192.168.1.157 255.255.255.240
no shutdown

ip default-gateway 192.168.1.158
exit
write
