Which two features of enterprise class equipment assists an enterprise network in maintaining 99.999 percent up-time? (Choose two.)
redundant power supplies
Which design feature will limit the size of a failure domain in an enterprise network?
the use of a collapsed core design
the use of the building switch block approach
the installation of redundant power supplies
the purchase of enterprise equipment that is designed for large traffic
How can an enterprise network be designed to optimize bandwidth?
by installing devices with failover capabilities
by limiting the size of failure domains
by deploying a collapsed core model
by organizing the network to control traffic patterns
Which technology is required when switched networks are designed to include redundant links?
Spanning Tree Protocol
virtual private networks
A network administrator is planning redundant devices and cabling in a switched network to support high availability. Which benefit will implementing the Spanning Tree Protocol provide to this design?
Multiple physical interfaces can be combined into a single EtherChannel interface.
Redundant paths can be available without causing logical Layer 2 loops.
Network access can be expanded to support both wired and wireless devices.
Faster convergence is available for advanced routing protocols.
What are two benefits of extending access layer connectivity to users through a wireless medium? (Choose two.)
decreased number of critical points of failure
increased bandwidth availability
increased network management options
Refer to the exhibit. Which devices exist in the failure domain when switch S3 loses power?
S4 and PC_2
PC_3 and AP_2
AP_2 and AP_1
PC_3 and PC_2
S1 and S4
As the network administrator you have been asked to implement EtherChannel on the corporate network. What does this configuration consist of?
providing redundant links that dynamically block or forward traffic
grouping multiple physical ports to increase bandwidth between two switches
grouping two devices to share a virtual IP address
providing redundant devices to allow traffic to flow in the event of device failure
Which statement describes a characteristic of Cisco Meraki switches?
They promote infrastructure scalability, operational continuity, and transport flexibility.
They are cloud-managed access switches that enable virtual stacking of switches.
They are campus LAN switches that perform the same functions as Cisco 2960 switches.
They are service provider switches that aggregate traffic at the edge of the network.
In which situation would a network administrator install a Cisco Nexus Series or Cisco Catalyst 6500 Series switch to promote infrastructure scalability?
to enable virtual stacking of switches to provide cloud-managed access
on a service provider network to promote integrated security, and simplified management
on a data center network to provide expansion and transport flexibility
on a campus LAN network as access layer switches
Which statement describes a characteristic of Cisco Catalyst 2960 switches?
They do not support an active switched virtual interface (SVI) with IOS versions prior to 15.x.
They are best used as distribution layer switches.
They are modular switches.
New Cisco Catalyst 2960-C switches support PoE pass-through.
A network engineer is reviewing a network design that uses a fixed configuration enterprise router that supports both LAN and WAN connections. However, the engineer realizes that the router does not have enough interfaces to support growth and network expansion. Which type of device should be used as a replacement?
a Layer 3 switch
a modular router
a PoE device
another fixed configuration router
Which two requirements must always be met to use in-band management to configure a network device? (Choose two.)
a direct connection to the console port
a direct connection to the auxiliary port
a terminal emulation client
at least one network interface that is connected and operational
Telnet, SSH, or HTTP access to the device
Why would a network administrator issue the show cdp neigbors command on a router?
to display device ID and other information about directly connected Cisco devices
to display router ID and other information about OSPF neighbors
to display line status and other information about directly connected Cisco devices
to display routing table and other information about directly connected Cisco devices
Immediately after a router completes its boot sequence, the network administrator wants to check the routers configuration. From privileged EXEC mode, which of the following commands can the administrator use for this purpose? (Choose two.)
What are two functions of a router? (Choose two.)
It connects multiple IP networks.
It controls the flow of data via the use of Layer 2 addresses.
It determines the best path to send packets.
It manages the VLAN database.
It increases the size of the broadcast domain.
What is a characteristic of in-band device management?
It uses a terminal emulation client.
It is used for initial configuration or when a network connection is unavailable.
It uses a direct connection to a console or AUX port.
It is used to monitor and make configuration changes to a network device over a network connection.

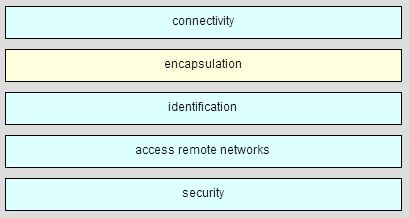

Mach the purpose to the related configuration item. (Not all options are used.)
